BRD-KH02 UHF RFID Industrial integration Reader uses R2000 chips,Reading speed 400 tags/s
Broadradio is a high-tech enterprise (national high-tech enterprise, Shenzhen high-tech enterprise) specializing in RFID, production and sales of RFID hardware products, including UHF RFID antenna, RFID electronic tag, RFID access control, rfid handset, Rfid reader, rfid smart file cabinet, RF cable, etc. With excellent independent innovation ability and professional technical team, it has obtained more than 100 national patents and PCT international patents.
Brief introduction
1, UHF RFID Industrial integration Reader uses R2000 chips, It max power output is 30dBm
2, with an 6dbi built-incircular polarized antenna, reading distance can reach 6 meters
3, maximum identifying speed can reach 400 tags/sec
4, Many external ports, Including network interface, RS232, GPIO_IN*4, GPIO_OUT*4, RS485, wiegand, CAN, relay, can meet different client’s requirement
5, POE power supply mode and 12V DC is supported
6, With inside hardware watch dog and Protection circuits ,it supports variousapplication scenarios and situations,including, but not limited to,industrial manufacture
Technical data
| No | Item | Technical data | Unit | Remark |
| 1 | Working voltage | 12 | V | |
| 48 | V | 802.3af POE |
| 2 | maximum power consumption | 10 | W | |
| 3 | Defaul working frequency | Frequency hopping | MHz | Frequency interval 250KHz |
| 4 | Channel bandwidth | 250 | KHz | |
| 5 | Frequency hopping speed | ≤2 | s | |
| 6 | Max Tx power | 30 | dBm | EIRP 36dBm |
| 7 | Stepping interval | 1 | dB | 5~30dBm, adjustable by software |
| 8 | Radio-frequency power rising time | ≤500 | μs | |
| 9 | Radio-frequency power droping time | ≤500 | μs | |
| 10 | Adjacent channel power leaking ratio | ≤-40 | dB | ±1CH |
| ≤-60 | dB | ±2CH |
| 11 | Frequency stablizing ratio | ±10 | ppm | -25℃～+40℃ |
| ±20 | ppm | -40℃～+60℃ |
| 12 | Max reading range | 6 | m | 6dBi Antenna |
Environment requirement
| No | Item | Technical data | Unit | Remark |
| 1 | Working temperature | -20～+60 | ℃ | |
| 2 | Storage temperature | -40～+85 | ℃ | |
| 3 | Relative humidity | 5%～95% | RH | non-condensing |
Product Tags:
|
|

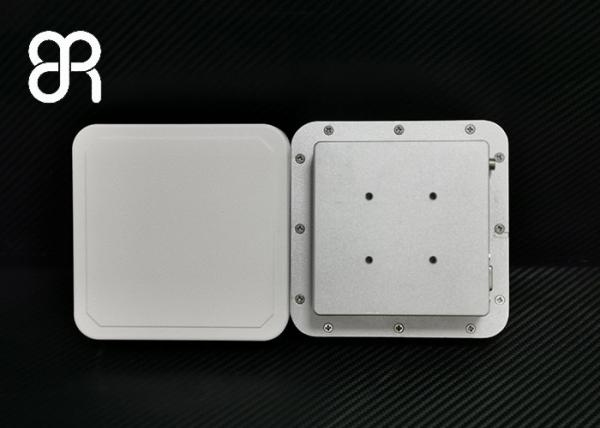

Reading Speed 400 Tags /S IP54 Uhf Long Range Rfid Reader Images
|
